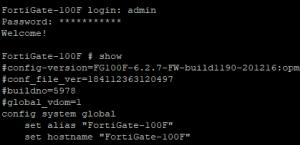

List of commands useful to use inside the FortiGate CLI

Commands

DHCP

# Get a list of DHCP leases
execute dhcp lease-list

# Clear
execute dhcp lease-clear IP

ARP

# Get arp table list
get system arp
# Clear arp
execute clear system arp table

Ping an IP address

execute ping-options source 192.168.1.1
execute ping 192.168.1.100

Diagnostics

Get the system status, firmware version information etc

get system status

Reboot the firewall

execute reboot

Restore a config from a USB drive, saved to root

execute restore config usb filename.conf

List directories on filesystem

fnsysctl ls -l /data/
diagnose sys last-modified-files /data/lib
diagnose sys last-modified-files /var/
diagnose sys last-modified-files /data/etc/
diagnose sys last-modified-files /flash

Get the system status, diagnosing memory and CPU issues. Get system uptime

#View overall memory and CPU usage
get system performance status

#View process info
#Order is - process name, Process ID, Process state, CPU usage %, Memory usage %
get system performance top

#Example with showing 40 lines and with a refresh of 1 second
get sys per top 1 40

# Get a summery of all processes
diagnose sys top-summary

# Other commands
diag hard sysinfo memory
diag hard sysinfo slab
diag hard sysinfo shm
diag hard sys conserve
diag debug crashlog read

# Per VDOM reporting
get log disk setting
get log disk filter
get log memory setting
get log memory filter

HA Status

get system ha status

Select Slave Node where USERNAME is the username to access the device, usually admin and 1 is the unit number

execute ha manage 1 USERNAME

Change Master to Slave. This is done by changing the priority of the HA device

config system ha
  set priority 1
end

View Licensing Info. Look for the Contract Expiry Date

diagnose autoupdate versions

View fortiguard contact

get system fortiguard

Run top for system processes (gets the top used services)

get system performance top

Kill a process (e.g. httpsd)

diagnose sys kill 11

Clear all IP sessions

diag sys session clear

Debug spam filter

diag de app spamfilter -1
diag de en

#After done the debug, run the following to stop
diag de di
diag de app spamfilter 0

Get interface information e.g. error rates where NIC is the interface

diag hardware deviceinfo nic NIC

Sniffer / Packet tracing

Configs

When two FortiGate clusters are in the same network, you may experience packet loss because of MAC conflicts. Thee fix is to set the group-id of each of the clusters so they are different

config system ha
  set group-id ID_OF_CLUSTER_INTEGER
end

Set SPAM Threshold

#http://kb.fortinet.com/kb/microsites/search.do?cmd=displayKC&docType=kc&externalId=FD32695&sliceId=1&docTypeID=DT_KCARTICLE_1_1&dialogID=55581519&stateId=0%200%2055583060

config system fortiguard
set antispam-score-threshold 120
end

When adding a VPN, we need to blackhole a session so it doesn't become stale. This is because the WAN comes up first and the VPN comes up 2nd and the session is already established. We need to add a blackhole route for when WAN interface goes down

config router static
    edit 4
        set dst 10.30.0.0 255.255.255.0
        set distance 100
        set blackhole enable
    next
end

Knowledge Base - Issue with slow or non reponsive dns over vpn

Issue Summary — FortiGate VPN DNS Resolution Delay

VPN clients connected to the FortiGate through IPSEC_Dialin were experiencing very slow or failed DNS resolution for external Internet domains.

Symptoms

VPN clients were configured to use the FortiGate DNS proxy:

DNS Server: 10.150.15.1

VPN Client: 10.110.0.x

Internal DNS forwarding was working correctly. For example:

pioneergen.local

-> 192.168.15.26

peg.pioneerenergy.co.nz

-> 10.150.14.20

The FortiGate successfully selected 192.168.15.26 for pioneergen.local queries and forwarded them using 10.150.15.1 as the source.

However, external queries sent directly to the FortiGate DNS proxy timed out:

Resolve-DnsName www.microsoft.com -Server 10.150.15.1

Packet captures showed repeated client DNS requests with long delays before a response.

Root Cause

The CUS-PGL VDOM was configured to provide recursive DNS service on the VPN interface:

config system dns-server

edit "IPSEC_Dialin"

set mode recursive

end

However, the VDOM's default DNS resolver configuration was:

config system vdom-dns

set vdom-dns enable

set primary 0.0.0.0

set secondary 0.0.0.0

end

Therefore, the FortiGate could resolve names covered by its conditional dns-database forwarders, but had no upstream DNS server available for all other domains.

The dnsproxy debug confirmed this for external domains such as outlook.office.com:

dns_find_best_server(): cannot find server

dns_send_resol_request(): cannot find server

This caused external DNS queries from VPN clients to retry/time out, creating the apparent DNS slowness.

Fix

Configure valid recursive DNS servers for the CUS-PGL VDOM.

For example, if 192.168.15.26 is permitted to recursively resolve Internet domains:

config system vdom-dns

set vdom-dns enable

set primary 192.168.15.26

set source-ip 10.150.15.1

end

A suitable secondary resolver can also be configured:

config system vdom-dns

set primary 192.168.15.26

set secondary <secondary-DNS-IP>

set source-ip 10.150.15.1

end

The resulting DNS flow is:

VPN Client

10.110.0.x

FortiGate DNS

10.150.15.1

+-- *.pioneergen.local

| -> 192.168.15.26

+-- *.peg.pioneerenergy.co.nz

| -> 10.150.14.20

+-- External domains

-> VDOM DNS resolver(s)

Verification

After applying the change, test from a VPN client:

Resolve-DnsName www.microsoft.com -Server 10.150.15.1

External names should now resolve immediately rather than timing out.

In short: the VPN and conditional DNS forwarding were functioning; the problem was that system vdom-dns was enabled with primary and secondary both set to 0.0.0.0, leaving FortiGate DNS proxy without an upstream resolver for external domains.
